bass box series

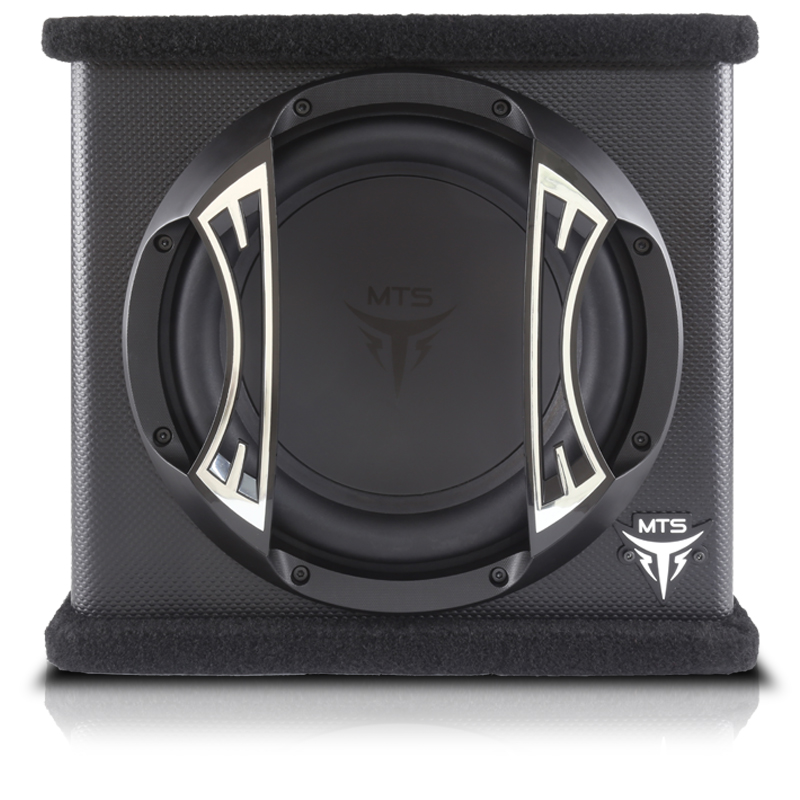

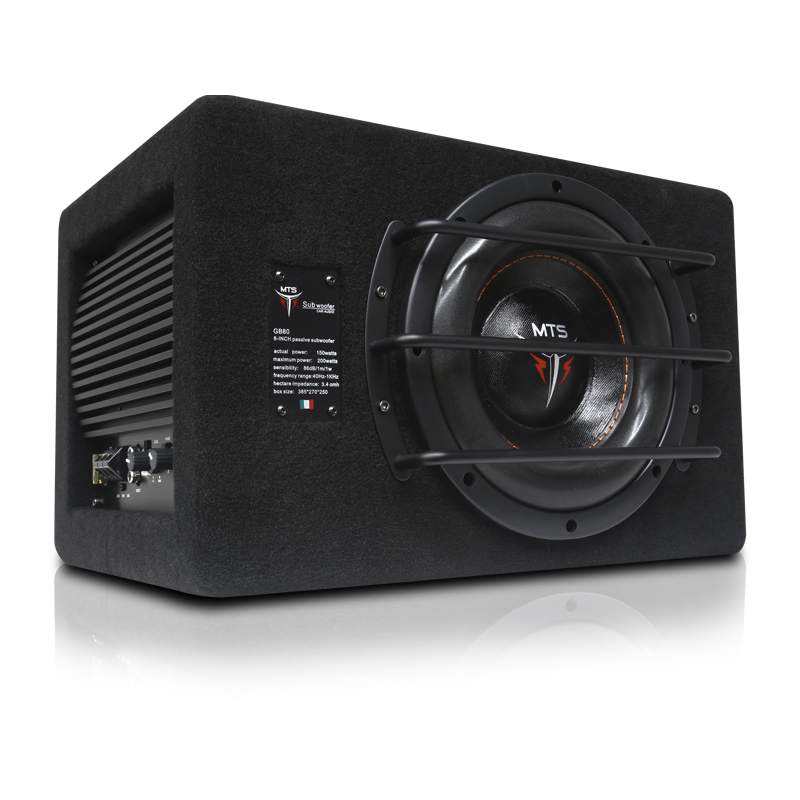

GB80

Technical Specifications

Nominal Power：（Watts）200
Music Power：（Watts）150
Frequency Response：（Hz）40-1K
Impedance：（OHMS）4
Size（mm）385 x 270 x250

8 inch active subwoofer，It sounds like flowing water，navigating in the turbulent sea，which stirs up the

deepestmood from the bottom of your heart and whirls out allyour worries.

The heavy bass rhythm resonates with listeners and makes the intoxicated deeply.

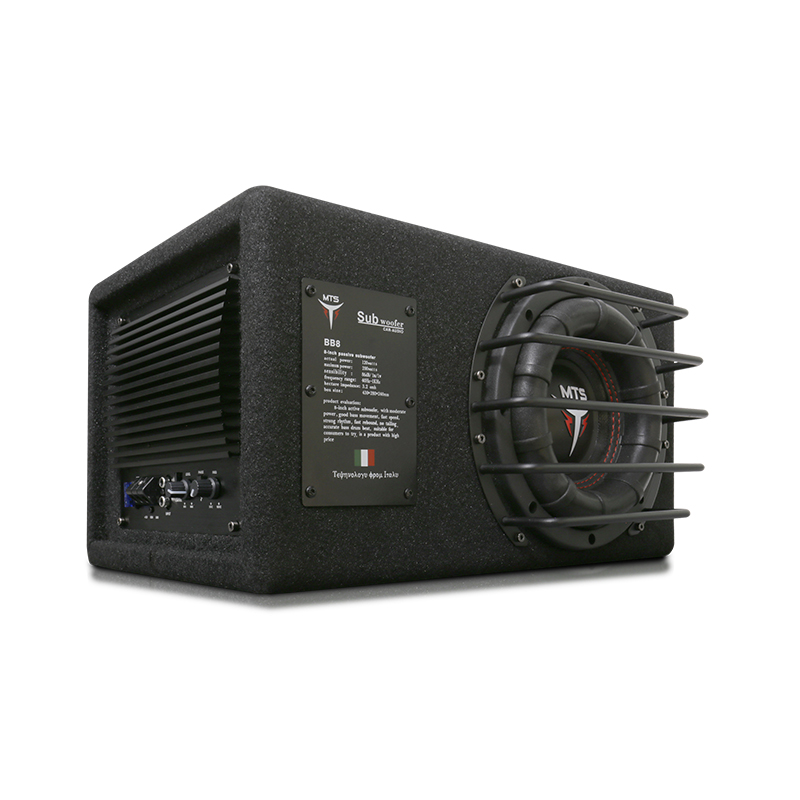

BB8

Technical Specifications

Subwoofer：（Inch）8
Actual power：（Watt）100
Maximum power：（Watt）200
Sensiblility：（dB/m/w）
84
Frequency range：（Hz）40
Hectar impedance：（ohm）3.2
box size：（mm）430*280*240

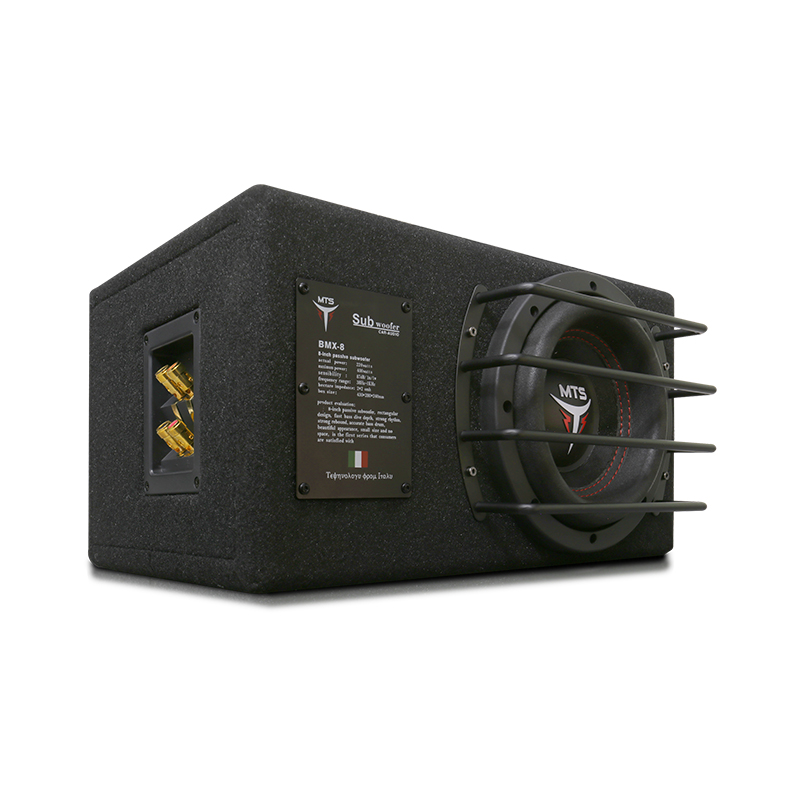

BMX-8

Technical Specifications

Subwoofer：（inch）8
Actual power：（Watts）220
Maximum power：（Watts）400
Sensiblility：（dB/m/w）87
Frequency range：（Hz）38-1K
Hectar impedance：（ohm）2*2
box size（L*W*H）（mm）430*280*240

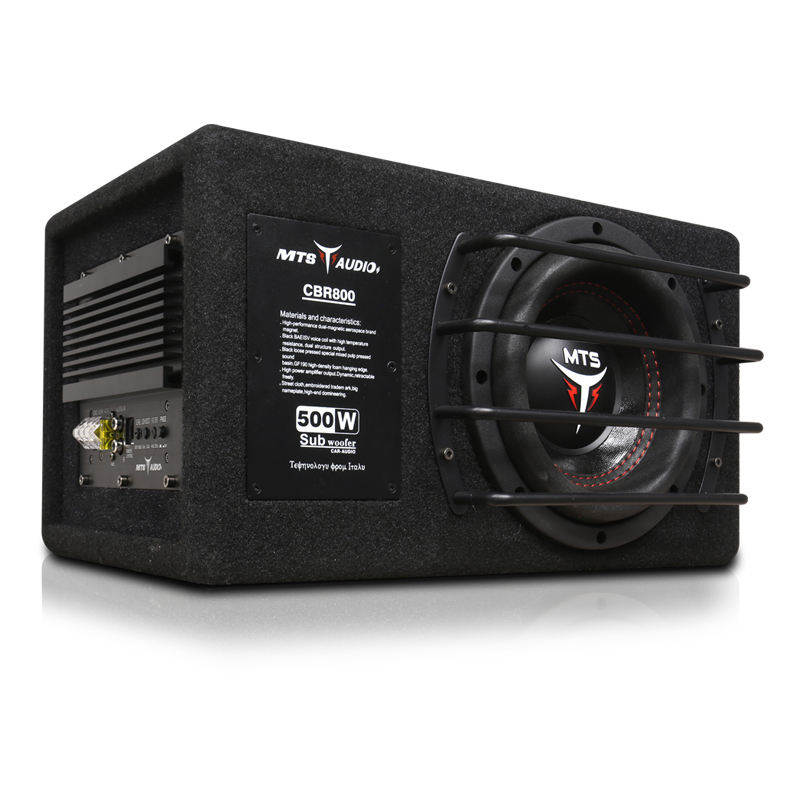

CBR800

Technical Specifications

Subwoofer：（inch）8
Actual  power: （Watts）300
Maximum power（Watts）500
Sensibility（dB/m/w）87
Frequency range（Hz）35-1K
Hectare impedance（omh）3.2*3.2
Box size：（mm）430*280*240


C-10x

Technical Specifications

Rated power：（Watt）200
Frequency Range：（Hz）20-200
Signal to noise ratio：（dB）＞90
Impedance：（ohm）4
Length：（mm）370
High：（mm）300
Upper width：（mm）250
Lower width：（mm）340


C-12x

Technical Specifications

Rated power：（Watt）250
Frequency Range：（Hz）20-200
Signal to noise ratio：（dB）＞90
Impedance：（ohm）4
Length：（mm）380
High：（mm）360
Upper width：（mm）255
Lower width：（mm）350


VX10

Technical Specifications

Max Power：200W x 1
THD：0.08%
Signal-to-Noise Ratio：88dB
Frequency response：

30Hz-200Hz

Input sensitivity，high level：

300mV-10V
Input sensitivity，low level：100mV-3.5V
Fuse rating：25A x 1
size（L*W*H）：340*367*313（mm）


VX12

Technical Specifications

Max Power：700W x 1
THD：0.01%
Signal-to-Noise Ratio：80dB
Frequency response：30Hz-150Hz
Input sensitivity，high level：730mV-15.5V
Input sensitivity，low level：200mV-5V
Fuse rating：20A x 3
Size（L*W*H）：441*415*337（mm）

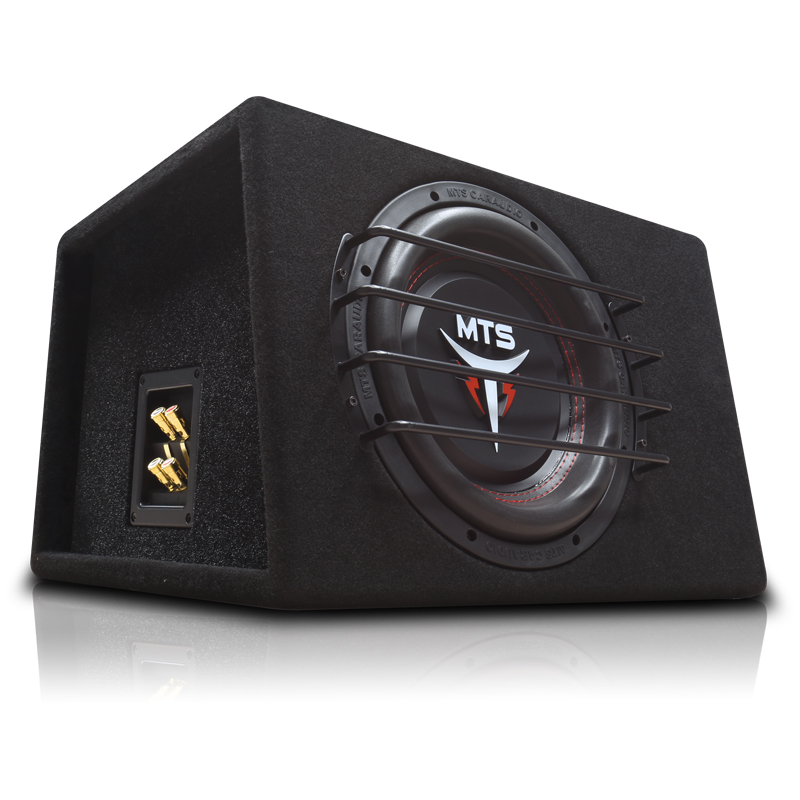

AK12 box

Technical Specifications

Normal power：（Watts）400
Maximum power：（Watts）800
Impedance per hectare：（oz）3.2 x 3.2
Actual impedance：（oz）1.6
Sensitivity：（dB/m/w）87
Frequency range：（Hz）35-800K
Product length：（mm）560
lower room：（mm）360


X8pro

Technical Specifications

Max Power：
150W x 1
THD：＜0.5%
Signal-to-Noise Ratio：＞80dB
Frequency Response：20Hz-150Hz
Input sensitivity ， high level：300mV-10V
Input sensitivity ， low level：100mV-3.5V
Bass Boost：0dB~+12dB
Phase adjustment：0~180°
Fuse rating：25A
size（L*W*H）：290*245*77（mm）

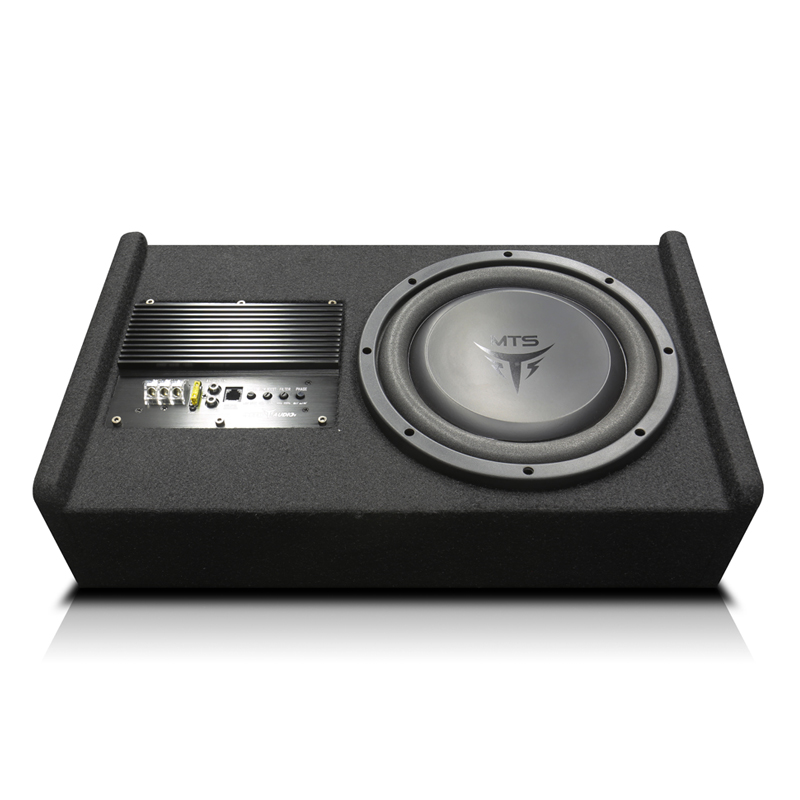

BS10X

Technical Specifications

Normal power：（Watts）180
Maximum power：（Watts）360
Impedance per hectare：（ohm）2+2
Actual impedance：（ohm）2+2
Sensitivity：（dB/1M/1W）85
Frequency range：（Hz）45-1.5K
box size：（mm）520x305x130
Active power amplifier：12V 300W Class D power amplifier

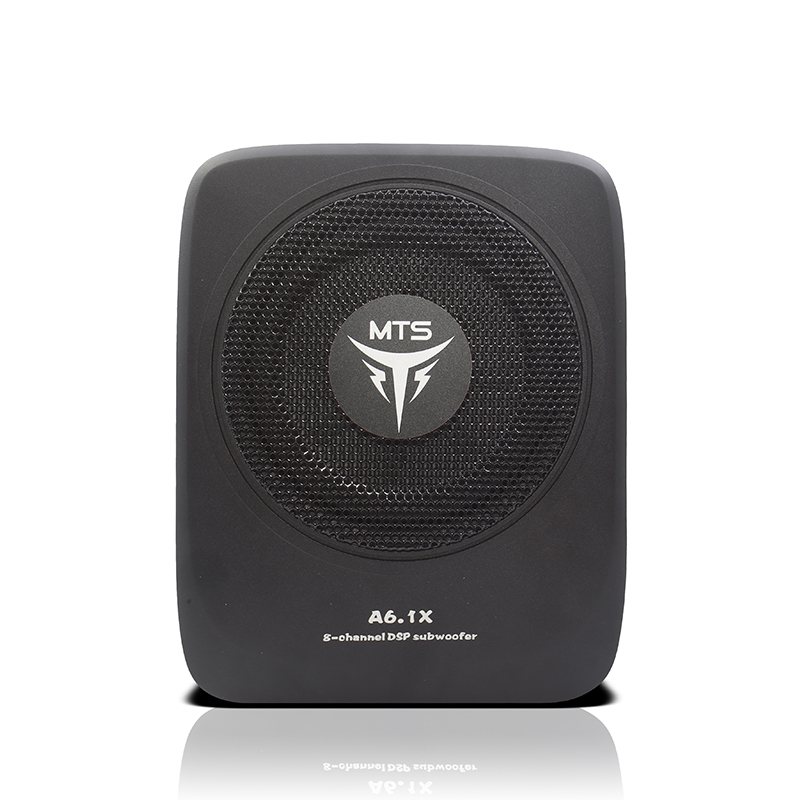

A6.1X

Technical Specifications

Built-in 8-channel DSP+ subwoofer
Small bass, big power
Mid and low automatic compensation function
Dual voice coil 6.5 "subwoofer
Aluminum alloy labyrinth box design
Hd 5.0 Bluetooth music playback/Music U disk play
Computer/mobile phone debugging
Optional control panel


A6.1X Pro

Product parameter

Rated power :320WPeak power :8x90W
Frequency response :30Hz-150HzLow-pass filtering :50Hz-150Hz
Sensitivity :89dBImpedance :2Ω+2Ω
Distortion degree :<0.1%Rated voltage :12 v-17v
New 8-way DSP subwoofer (no-connect power cord)Low power and high performance
built-in 8-channel DSP amplifierDouble voice coil 6.5 "labyrinth box opening design
Special car special line lossless insertion,30 minutes quick installation
size：290x220x65mm
