DSP series
DSP M6miniS
Technical specifications
| Built-in impedance detection function Fully compatible with the latest models non-destructive installation | |
| Input output： | 4 high level input, U disk input, Bluetooth input, USB sound card input |
| Four 35W power amplifier outputs, six RCA outputs | |
6 EQ modes can be preset | Support PC tuning, small program tuning |
| 31 EQ multi-slope high-low pass function | |
| 6 channels independent delay adjustment function | |
| Supported files： | FLAC、APE、MP3、WMA、WAV |

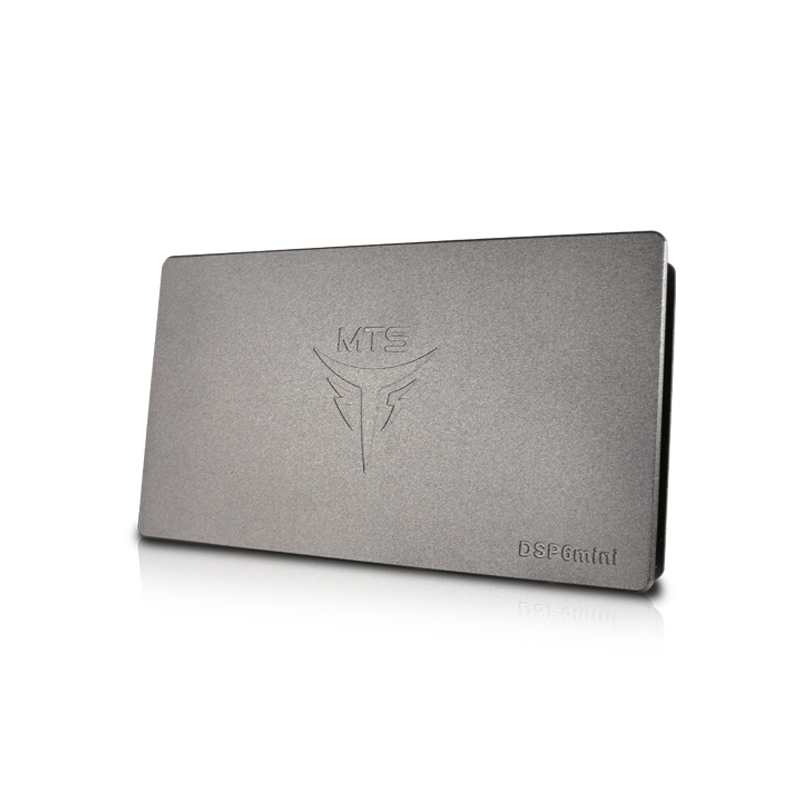

DSP6 Mini
Technical specifications
| Pure Italian design丨Built-in class AB power amplifier丨4X50W4 high-level outputs丨2 low-level outputs丨10-segment EQ for computer, 5-segment EQ for main unit丨Non-destructive installation (excluding special cable) | |
| Dynamic range： | ≥110dB |
| Signal to noise ration： | ≥98dB |
| Total harmonic distortion： | ≤0.05% |
| Frequency response： | 20Hz~20KHz |
| Input impedance： | High level input：240Ω |
| size（L*W*H）： | 178*102*36（mm） |

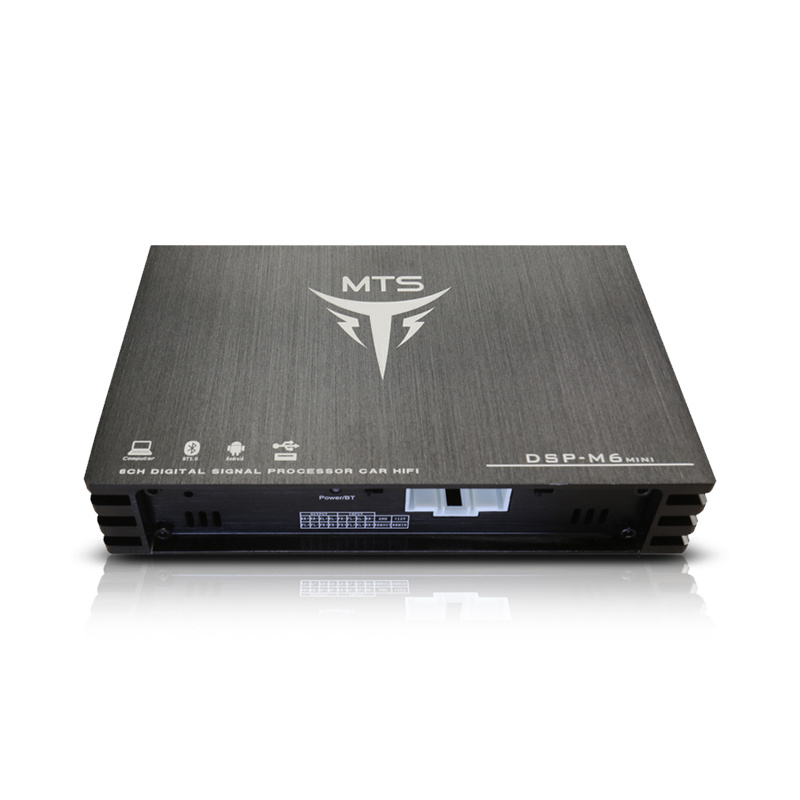

DSPM6mini
Technical Specifications
| Peak power： | 85W X 4 |
| Frequency Range： | 30Hz-20KHz |
| Signal to noise ratio： | 105dB/w |
| Distortion： | 0.01% |
| size（L*W*H）： | 171*108*33（mm） |
| Non-destructive installation | hidden installation |
| 31-segment EQ | Computer tuning |
| Bluetooth playback | Mobile phone tuning（Android） |

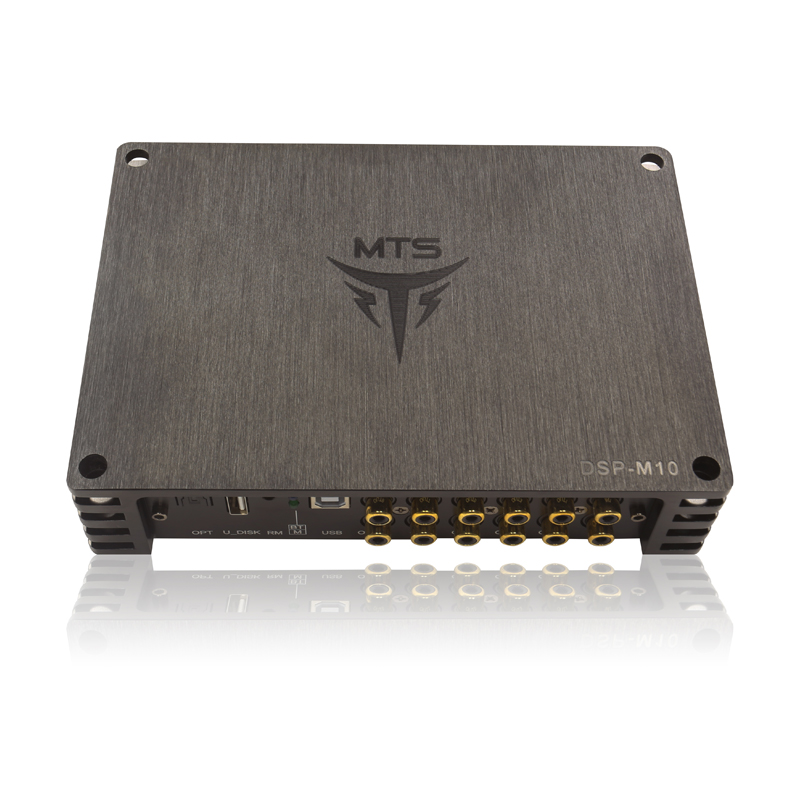

DSP-M10
Technical Specifications
| Main functional features | |||
| 2 low level input, 8 high level input, Bluetooth input, U disk playback, optical fiber input | |||
| The maximum sampling rate is 96KHz | |||
| 8 high level outputs, 10 RCA outputs. | |||
| High level and other audio sources can be mixed output. | |||
| DSP function | |||
| Matrix routing function, each output channel can select the input signal source | |||
| 8×31+2×10 segment PEQ, multi-slope high-low pass function |

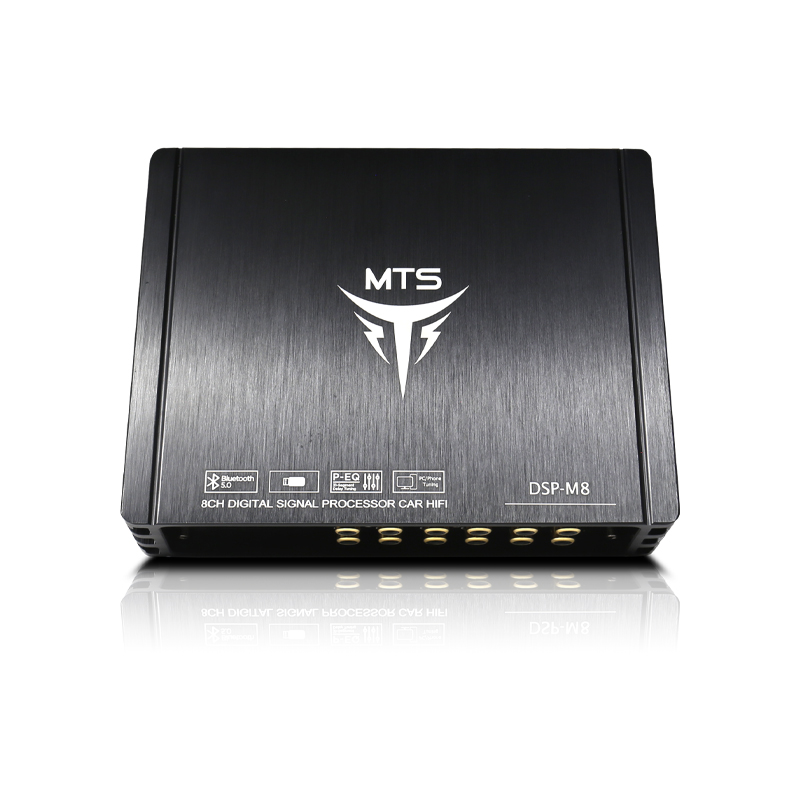

DSP-M8
Technical specifications
| Built-in impedance detection function Fully compatible with the latest models non-destructive installation | |
| Input/output： | 4 low input，4 high input |
| Bluetooth input，USB sound card input | |
| USB disk lossless playback | |
| optical fiber input | |
| 4 power amplifier output 8 RCA output | |
| Supported files： | FLAC、APE、MP3、WMA、WAV |

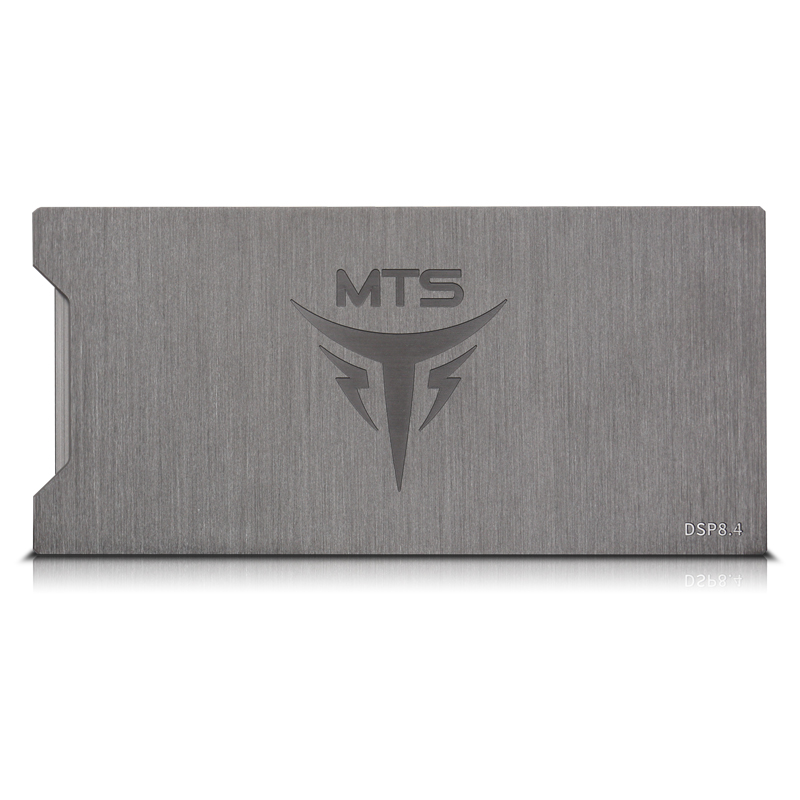

DSP8.4
Technical Specifications
| DSP chip： | ADI1701 |
| Power： | 4 x 50W |
| Bluetooth： | 5.2IIS pure digital |
| EQ | 36-band |
| 8 low-level outputs | 4 high level outputs |
| USB decoding method | IIS pure digital lossless decoding |
| Signal-to-noise ratio | ＞90dB |
| size（L*W*H）： | 244*118*45（mm） |

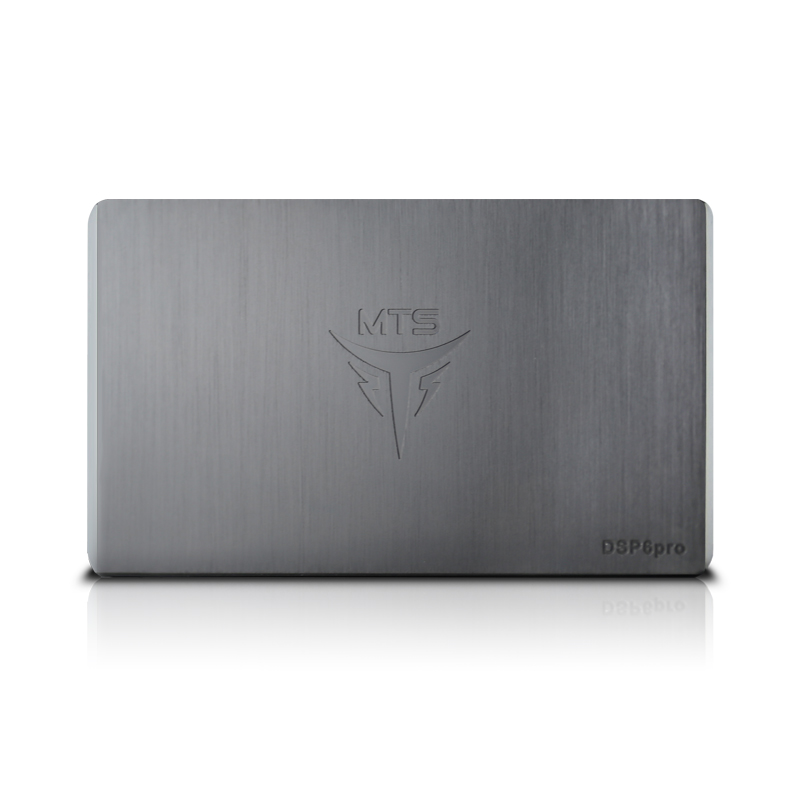

DSP6 PRO
Technical Specifications
| Pure Italian design, built-in class AB power amplifier丨 4 channels of high and low level output丨6 channels of low level output丨31-segment EQ, 15 minutes of non-destructive installation (optional Bluetooth adapter) | |
| Low level out： | 6CH4.6V |
| High level output： | 4 x 65W MAX |
| Dynamic range： | ≥100dB |
| Signal-to-noise ratio： | ≥70dB |
| Total harmonic distortion： | ≤0.05% |
| size（L*W*H）： | 221*132*48（mm） |

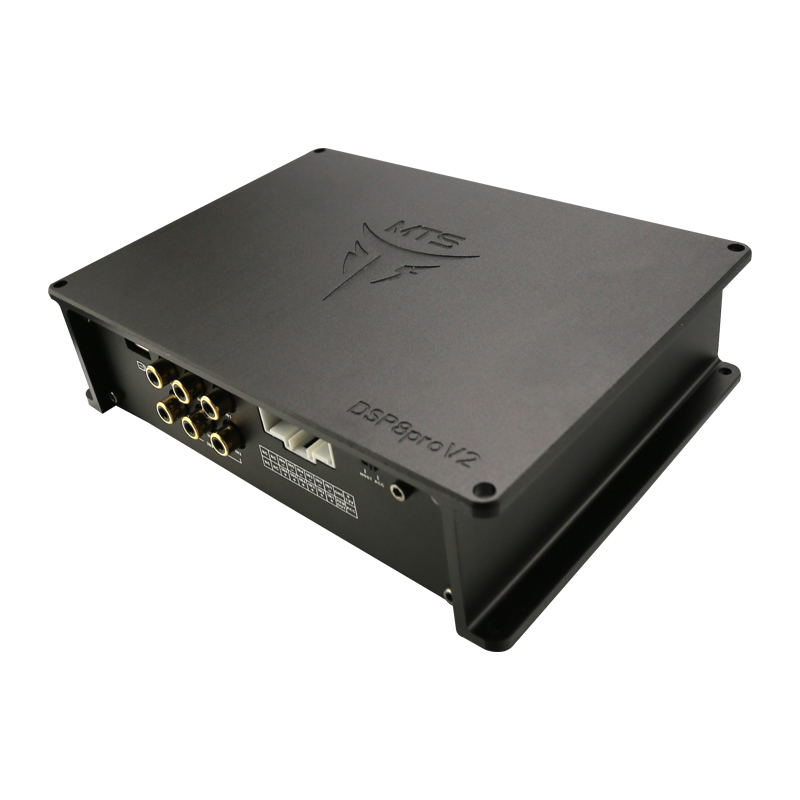

DSP8 PROV2
Technical Specifications
| Upgraded standard control panel丨Built-in Bluetooth chip丨No loss of U disk player丨31-segment EQ丨Pure Italian design丨Pure DSP processor丨Six inputs, eight outputs | |
| Low level output： | 8CH4.6V |
| High level input： | 6CH |
| Dynamic range： | ≥110dB |
| Signal to noise ratio： | ≥96dB |
| Total harmonic distortion： | ≤0.01% |
| size（L*W*H）： | 192*138*49（mm） |
Eternity DSP pro
Technical Specifications
| 8-channel high/low level input (can be mixed and combined)丨Input level adjustment丨Digital input (optical/coaxial input)丨12-channel low-level output丨Built-in Bluetooth 5.0 mobile phone music playback丨Standard control panel丨 24k gold plated terminals | |
| Low levle output： | 12CH |
| Low level input： | 8CH |
| High level input： | 6CH |
31-segment EQ | standard control panel |
| Built-in Bluetooth 5.0 | Optical/coaxial input |
| size（L*W*H）： | 185*175*50（mm） |
HD 12-8
Technical Specifications
| Pure Italian circuit design丨Coaxial/optical digital input丨6-channel high/low level input丨8-channel power output丨12-channel low-level output丨24K gold-plated terminal (optional: Bluetooth module, control panel)丨Luxury can be realized Model non-destructive installation丨Refit the whole vehicle active system, etc. (excluding special lines) | |
| Low level output： | 12CH |
| High level input： | 6CH |
| High level output： | 8CH*60W |
| Dynamic Range： | ≥110dB |
| Frequency response： | 20Hz-20KHz |
| size（L*W*H）： | 208*185*46（mm） |

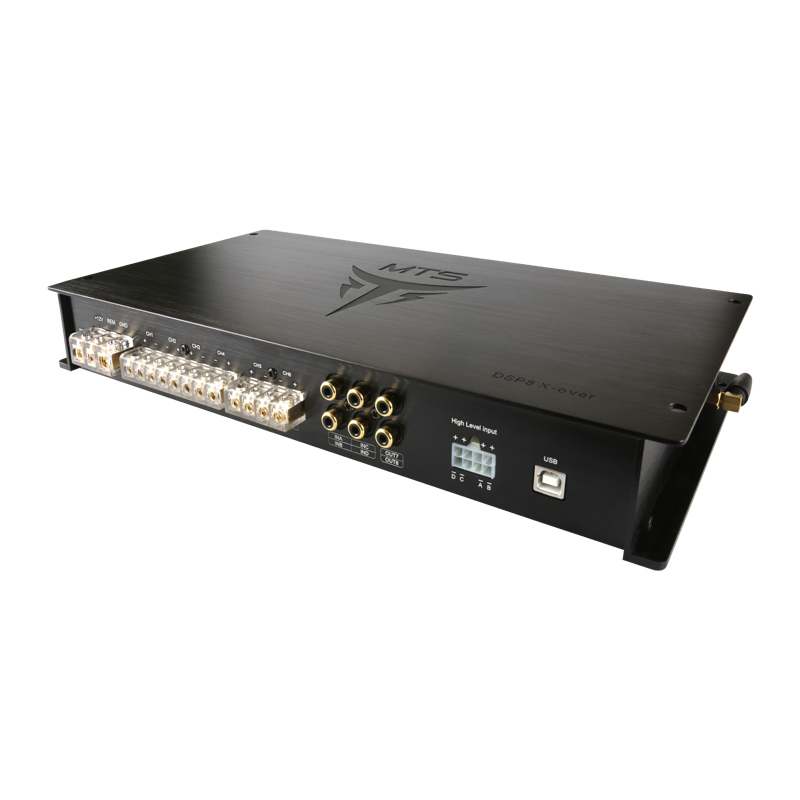

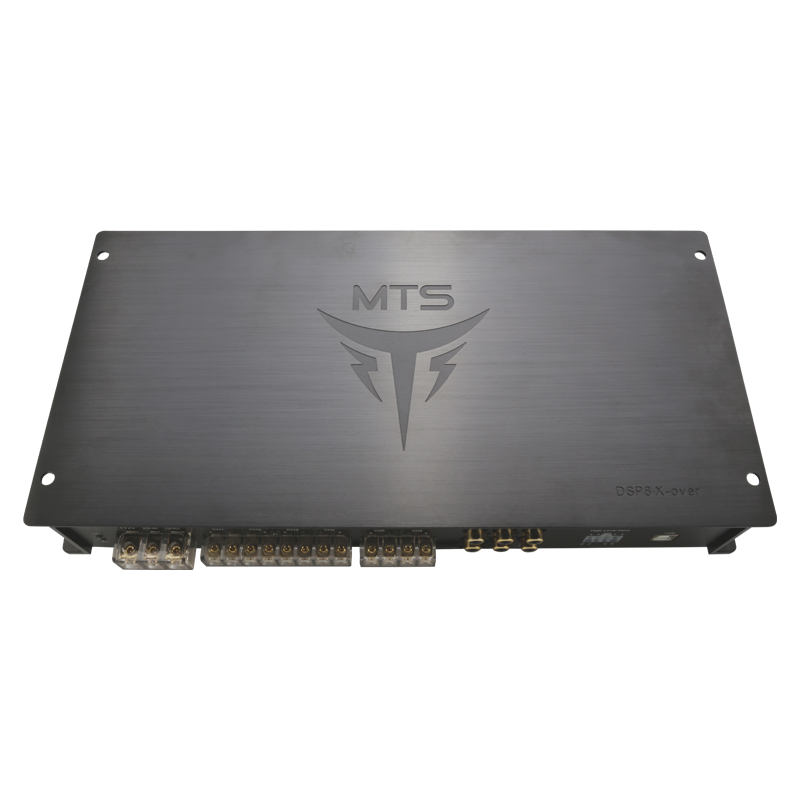

DSP8 X-OVER.A
Technical Specifications
| Pure Italian design丨built-in 6X75W high-power amplifier丨4-way input丨can play active three-way frequency | |
| Low level output： | 2CH4.6V |
| High level output： | 6CH75W |
| Dynamic Range： | ≥110dB |
| Signal-to-noise ratio： | ≥104dB |
| Total harmonic distortion： | ≤0.01% |
| Frequency response： | 20Hz~20KHz |
| size（L*W*H）： | 350*184*50（mm） |
DSP8 X-OVER.B (with Bluetooth)
Technical Specifications
| Pure Italian design, built-in 6X75W high-power amplifier, 4-way input, can play active three-way frequency, built-in Bluetooth function | |
| Low level output： | 2CH4.6V |
| High level output： | 6CH75W |
| Dynamic range： | ≥110dB |
| Signal-to-noise ratio： | ≥104dB |
| Total harmonic distortion： | ≤0.01% |
| size（L*W*H）: | 350*184*50（mm） |

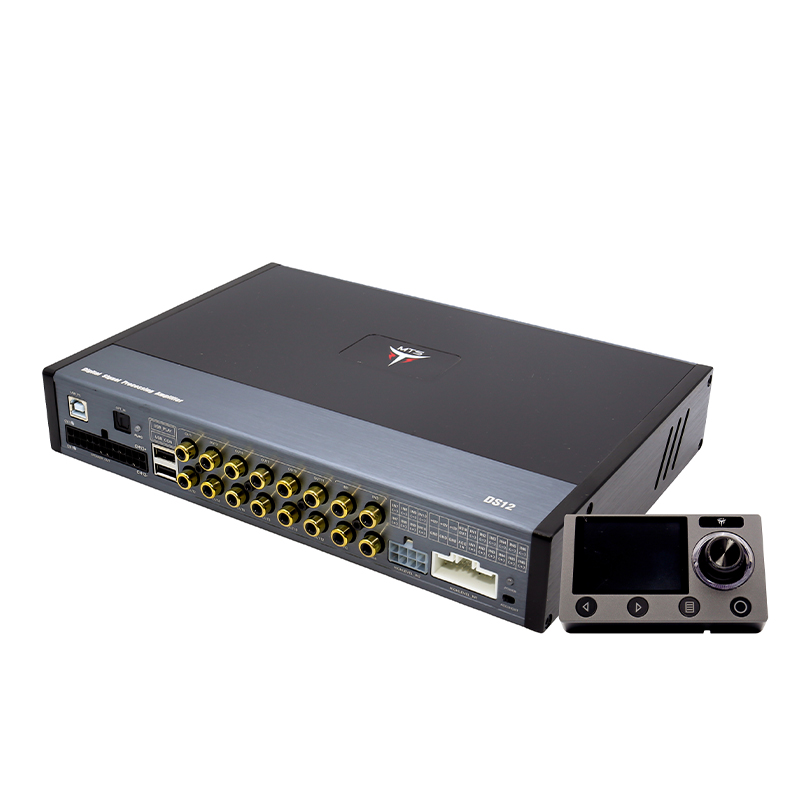

DS12
Technical Specifications
| 12 channels *65W high level output | 12 RCA x 5.5Vpp outputs |
| 10 high frequency input | 4 low level inputs |
| Fiber optic digital input, 31 EQ | Built-in Bluetooth 5.0, USB playback |
| Standard control panel | 31-section EQ equalizer |
| Dynamic range: >105dB | Total harmonic distortion: ≤0.05% |
| SNR: (RCA) >104dB | Frequency response range: 20Hz~20KHz |
| Input impedance Low input: 20KΩ; High level input: 10Ω | |
| Low level output impedance :47Ω | REM Output :+12V voltage output (1A) |
Q12+
Technical Specifications
| High level output： | 12CH x 100W | Low level output： | 8CH |
| High level input： | 10CH | Frequency response range： | 20Hz-20KHz |
| Sampling rate： | 96KHz | Dynamic Range： | ≥105dB |
| Signal to Nose Ratio： | ≥104dB | Total harmonic distortion： | ≤0.05% |
| Input resistance： | Low level input：20KQ；High level input：240Ω | ||
| SStart method： | High level any channel，ACC，input start optional | ||
| Product Size（L*W*H）：350*185*45（mm） | control panel size（L*W*H）：130*57*18（mm） | ||
| Built-in HD 5.0 Bluetooth | Optical (192KHz) input | Mobile app tuning | Standard control panel |

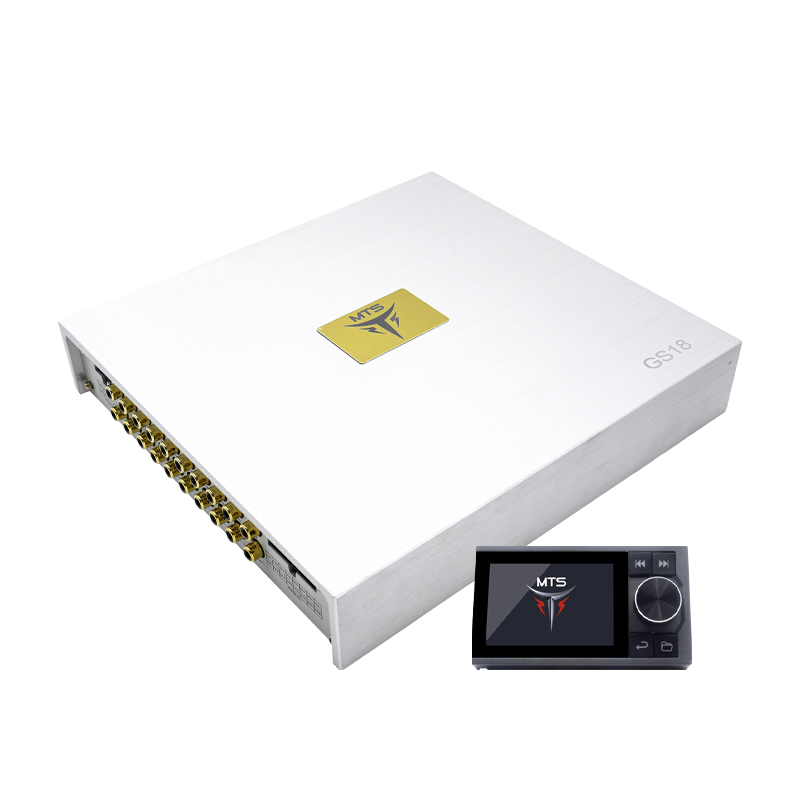

GS18
Technical Specifications
| 18-channel panoramic sound DSP amplifier | Panoramic sound algorithm DSP |
| 16CH X 75W output (peak power) | HI-FI level high sampling rate ADC/DAC |
| 18CH RCA output | Double quad core290MHZ high speed DSP processor |
| 2CH RCA Input | Hd digital player |
| 16CH high level input | Decode multiple audio formats |
| Fiber/coaxial digital input | 31 EQ, no channel delay: 20ms |
| Hd Bluetooth music playback input | Automatic bass processing algorithm |
| OTG playback | Optional control panel |

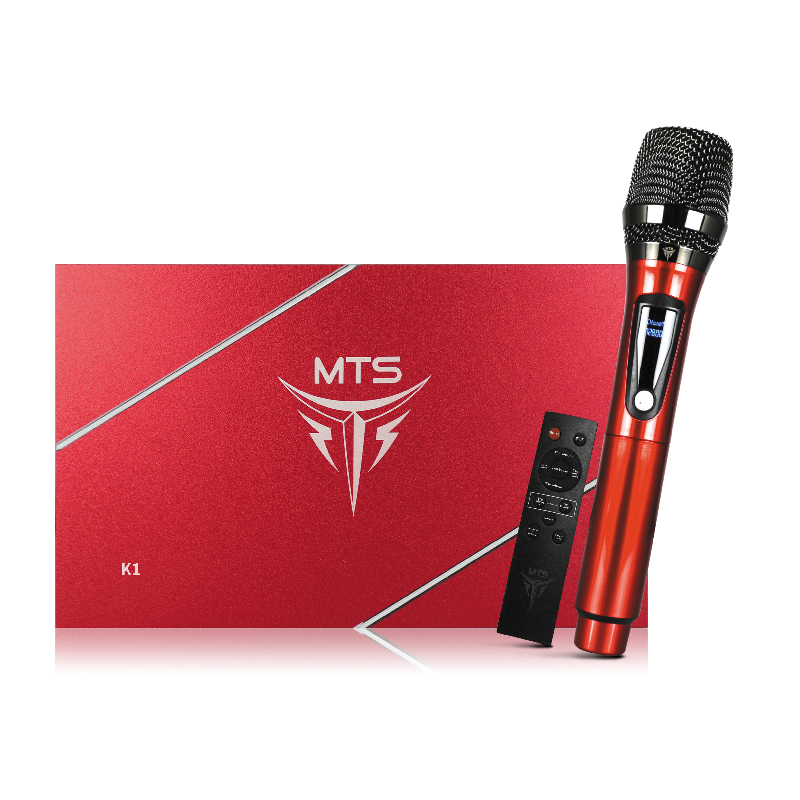

K1
Technical Specifications
| The product comes with 4*20WAB class power amplifierwhich can realize lossless insertion.The plug-in definition is compatible with mainstream interfaces on the market.Support Bluetooth 4.2 lossless music playback and U diskplayback.Bluetooth and U disk music control are controlled by 43remote control, allowing you to completely get rid of the limitations of infrared remote control and ensure driving safety.The operation is simplethe body has only 6 knobswhich are used to control.the Echo echo effect,Delay delayeffectmicrophone treble gainmicrophone.bass gain,sound treble gain,and sound bass gain from left to right. | |
| K song mix | HD U disk playback |
| U disk playback support format： | wav，ape，flac，MP3 |
| Bluetooth 5.0 playback | AUX；eliminate the original sound |
k2
Technical Specifications
| The product comes with 4*20WAB class power amplifierwhich can realize lossless insertion.The plug-in definition is compatible with mainstream interfaces on the market.Support Bluetooth 4.2 lossless music playback and U diskplayback.Bluetooth and U disk music control are controlled by 43remote control, allowing you to completely get rid of the limitations of infrared remote control and ensure driving safety.The operation is simplethe body has only 6 knobswhich are used to control.the Echo echo effect,Delay delayeffectmicrophone treble gainmicrophone.bass gain,sound treble gain,and sound bass gain from left to right. | |
| K song mix | HD U disk playback |
| U disk play back support format： | wav，ape，flac，MP3 |
| Bluetooth 5.0 playback | AUX；eliminate the original sound |
